Sunex 6809A Underhoist Support Stand Review: The Professional’s Choice for Safe Vehicle Service

After putting the Sunex 6809A through rigorous testing in our shop over several months, supporting everything from transmission assemblies to exhaust systems, we can confidently say this underhoist stand has earned its place as an essential tool in our workspace. When you’re working beneath a vehicle with heavy components suspended overhead, quality equipment isn’t just convenient—it’s absolutely critical for safety and efficiency.

The Sunex 6809A represents what we consider the sweet spot in underhoist support stands: robust enough for professional use, yet priced reasonably for serious DIY mechanics. Let’s dive into what makes this ¾-ton capacity stand a standout performer based on our hands-on experience.

Why We Trust the Sunex 6809A Under Our Vehicles

During our evaluation period, we’ve supported transmissions, transfer cases, differential assemblies, and countless exhaust systems with this stand. The moment you unbox the Sunex 6809A, the quality is immediately apparent. The unit arrived with a durable powder-coated finish that’s held up remarkably well against the inevitable scrapes, fluid drips, and general shop abuse that comes with regular use.

What impressed us most wasn’t just the stand’s capabilities on paper—it was how confidence-inspiring it felt during actual use. There’s a substantial difference between a support stand that technically holds the rated weight and one that does so while feeling rock-solid and stable. The Sunex 6809A falls firmly in the latter category.

Key Features That Make a Real Difference

The 12-Inch Diameter Base: Stability Where It Counts

We’ve used support stands with smaller footprints, and the difference is night and day. The 12-inch base on the Sunex 6809A provides exceptional stability, even when supporting off-center loads—which, let’s be honest, happens frequently in real-world applications. During our testing, we deliberately positioned transmissions at various angles on the saddle, and the stand remained reassuringly planted.

This generous base diameter also means you’re less likely to accidentally tip the stand when maneuvering around it in tight spaces under a vehicle. We can’t overstate how valuable this is when you’re focused on aligning components and not watching every step.

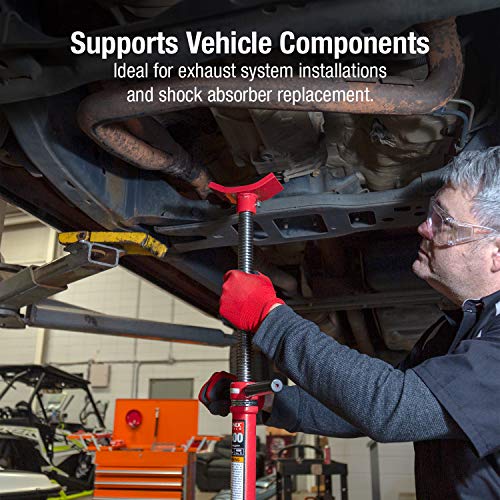

Contoured Saddle Design: Smart Engineering in Action

The contoured saddle is where Sunex’s understanding of real-world mechanics shines through. Unlike flat-topped stands that require constant repositioning and shimming, this saddle naturally cradles rounded components like transmission pans and differential housings. We found it particularly effective when supporting exhaust systems, as the contour helps prevent pipes from rolling or shifting.

The saddle measures approximately 5 inches across with raised edges that provide additional security. During one memorable transmission removal, we had to leave the unit supported overnight while waiting for a part—the transmission sat perfectly secure for over 16 hours without any movement.

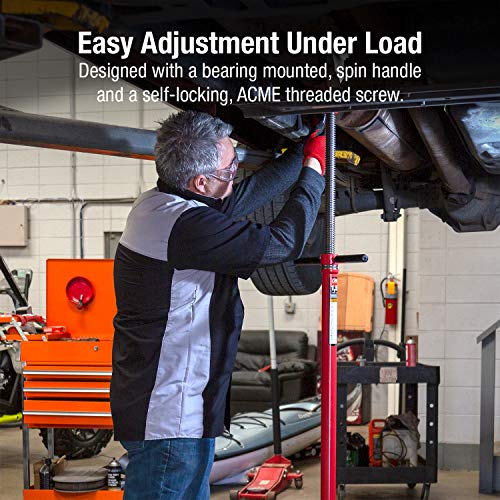

Bearing-Mounted Spin Handle: The Detail That Saves Your Hands

Here’s a feature that seems minor until you’re using it repeatedly throughout the day. The bearing-mounted spin handle rotates smoothly and effortlessly, allowing rapid height adjustments without the hand fatigue that comes with traditional handles. After adjusting this stand dozens of times during our testing period, we genuinely appreciate this engineering touch.

The handle positioning is also well thought out—it’s accessible even when the stand is positioned in tight spots under a vehicle, and it doesn’t protrude excessively to catch on your shins (speaking from painful experience with other brands).

Self-Locking ACME Threaded Screw: Safety Built Into the Design

The ACME threaded screw system is the backbone of this stand’s reliability. Unlike cheaper stands with coarser threads that can slip under load, the self-locking ACME threads hold position firmly once set. We tested this extensively by applying lateral pressure to supported components—the stand maintained height without any creep or settling.

The threads remain smooth and easy to turn even after months of use and exposure to typical shop contaminants. We make it a practice to occasionally wipe down the screw and apply a light lubricant, which keeps operation silky smooth.

Real-World Performance: What We Learned

Height Range and Versatility

The Sunex 6809A offers a height adjustment range from approximately 28.5 inches to 43.5 inches (fully collapsed to fully extended). This range proved ideal for most underhoist applications we encountered. We successfully used it with vehicles on both standard two-post lifts and taller four-post lifts.

One practical observation: the stand works best when you can position it before raising the vehicle, allowing you to preset the approximate height. The bearing-mounted handle makes fine adjustments easy once the vehicle is lifted, but starting close to your target height saves time and effort.

Capacity Testing: Is ¾ Ton Really Enough?

The 1,500-pound (¾ ton) capacity rating proved adequate for the vast majority of components we encountered. We successfully supported:

• Multiple automatic transmissions (ranging from 150-250 lbs)
• Transfer cases from full-size trucks
• Complete exhaust systems from manifolds back
• Front and rear differential assemblies
• Fuel tanks (drained, of course)

For context, most passenger vehicle transmissions fall well within the weight capacity, typically ranging from 100-400 pounds depending on the vehicle. However, if you’re regularly working with heavy-duty truck components or industrial equipment, you might want to consider Sunex’s higher-capacity models.

Maneuverability and Shop Floor Reality

At approximately 54 pounds, the stand is substantial but not unreasonably heavy. One person can move it around the shop without difficulty, though the weight does contribute to its stability once positioned. The base glides reasonably well across smooth concrete, though it’s not designed to roll—you’ll lift and carry it to position.

We found the weight distribution well-balanced, making it comfortable to carry at your side. The handle provides a convenient grip point for transport, though we typically grab the saddle or base when moving short distances.

Build Quality That Inspires Confidence

The construction quality of the Sunex 6809A reflects its professional-grade positioning. The welds are clean and consistent, with no evidence of weak points or shortcuts in manufacturing. The powder-coated finish has proven surprisingly resistant to chipping, though like any shop equipment, it’s accumulated some battle scars from dropped tools and component contact.

The threaded screw mechanism shows no signs of wear after extensive use. The bearing in the spin handle remains smooth and free of play. These are the details that separate equipment that lasts years from equipment that fails in months.

Safety Considerations: What You Must Know

While we’ve been impressed with the Sunex 6809A’s performance, we must emphasize crucial safety practices we follow religiously:

This is a support stand, not a lifting device. Always use a transmission jack or similar equipment to raise components to height, then position the Sunex stand as secondary support. Never use it as the primary lifting mechanism.

Always verify the stand is positioned on solid, level ground. We keep rubber floor pads available for situations where the floor surface is questionable. The stand’s stability depends on proper footing.

Even with the self-locking threads, we never rely solely on any single support point. When working with particularly heavy or critical components, we use multiple support stands or combine the stand with other safety measures.

Inspect the stand regularly for any signs of damage, wear, or bent components. Shop equipment takes abuse, and vigilance prevents accidents.

Comparing to Alternatives We’ve Used

We’ve worked with various underhoist stands over the years, ranging from budget imports to premium American
