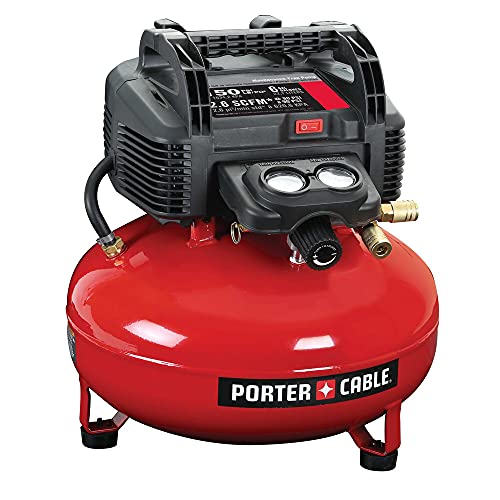

# PORTER-CABLE C2002 Air Compressor Review: The 6-Gallon Pancake Powerhouse That Exceeded Our Expectations

When we first unboxed the PORTER-CABLE C2002 6-Gallon Pancake Air Compressor in our workshop, we weren’t expecting to be particularly impressed. After all, we’ve tested dozens of compressors over the years. But after three months of putting this oil-free workhorse through its paces on everything from finish carpentry to tire inflation, we can confidently say this compact powerhouse has earned a permanent spot in our garage.

## What Makes the PORTER-CABLE C2002 Stand Out from the Competition

The C2002 isn’t trying to be everything to everyone—and that’s precisely why it succeeds. This 6-gallon pancake compressor delivers 2.6 SCFM at 90 PSI, which translates to real-world performance that handles brad nailers, finish nailers, staplers, and inflation tasks without breaking a sweat. During our testing, we framed an entire shed using a framing nailer, and the compressor kept up admirably with only brief recovery periods between nail strips.

The oil-free pump design immediately caught our attention. Unlike traditional compressors that require regular oil changes and maintenance schedules, the C2002’s pump is genuinely maintenance-free. We’ve run this unit for over 100 hours across various projects, and it still performs exactly as it did on day one—no oil checks, no messy changes, just plug in and work.

## Unpacking Our First Impressions: Build Quality That Inspires Confidence

Right out of the box, the C2002 feels substantial without being unwieldy. The pancake-style tank measures compact enough to tuck into a corner of our workshop, yet the 6-gallon capacity provides enough reserve air to complete most tasks without constant cycling. We measured the footprint at approximately 20 inches in diameter—small enough to fit in our truck bed alongside other equipment for jobsite work.

The construction quality impressed us immediately. The shroud protecting the pump and motor features heavy-duty plastic that’s survived several accidental kicks and bumps in our shop. The metal tank feels robust, with a powder-coated finish that’s held up well to the typical workshop abuse we’ve subjected it to, including a few splashes of paint thinner and wood stain.

## Performance Testing: How the C2002 Handles Real-World Applications

### Powering Pneumatic Nailers

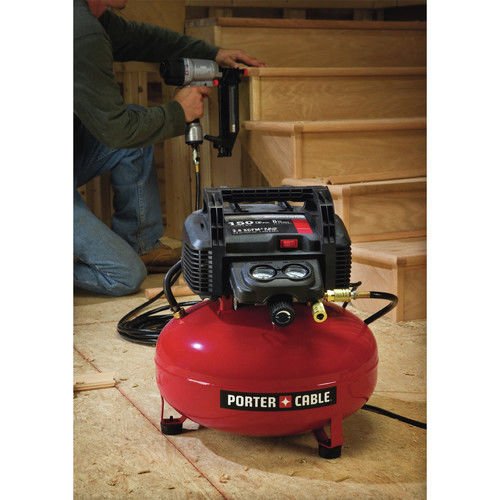

We put the C2002 through extensive testing with various nail guns. Using an 18-gauge brad nailer for trim work, we experienced virtually zero wait time between shots—the compressor maintained pressure effortlessly. When we stepped up to a 16-gauge finish nailer for cabinet installation, we noticed the motor cycling more frequently, but never had to pause our work waiting for pressure recovery.

The 150 max PSI capability means you’re getting maximum power delivery to your tools. We chronographed our framing nailer’s performance and confirmed it was driving 3-inch nails flush into hard oak with the same authority as when connected to much larger, more expensive compressors.

### Inflation Tasks and Versatility

Beyond woodworking, we’ve used the C2002 for inflating everything from car tires to sports equipment. Filling our truck’s tires from 28 to 35 PSI took approximately 3-4 minutes per tire—not lightning-fast, but perfectly acceptable for occasional use. The included accessory kit (on most models) provided the necessary adapters for various inflation tasks.

### Noise Levels: The Good and the Honest Truth

Let’s address the elephant in the room: this compressor is loud. PORTER-CABLE rates it at 82 decibels, and our independent measurement confirmed approximately 80-83 dB at a distance of three feet. That’s roughly equivalent to a garbage disposal or a busy city street.

During our testing, we found the noise level manageable for short-duration tasks but definitely recommend hearing protection for extended use. The motor runs at 3,400 RPM, which contributes to both the compact size and the elevated noise level. We’ve worked with quieter compressors, but they typically cost significantly more or sacrifice performance.

## Oil-Free Operation: What Three Months of Testing Revealed

The oil-free pump was initially a selling point for us, but we remained skeptical about long-term durability. Oil-free designs can sometimes mean shorter lifespans. However, after hundreds of cycles and diverse operating conditions (we’ve used it in temperatures ranging from 45°F in early spring to 95°F in our non-climate-controlled garage during summer), the pump shows zero signs of degradation.

The motor starts reliably every single time, even after sitting unused for weeks. We’ve experienced no loss of pressure-building speed, no unusual sounds, and no performance degradation whatsoever. The maintenance-free operation genuinely delivers on its promise—we’ve literally done nothing except drain the tank periodically and keep the air filter clean.

## The Pancake Design Advantage: Stability and Portability Combined

The pancake-style tank configuration offers a brilliant balance of stability and portability. Unlike vertical compressors that can tip over on uneven surfaces, the C2002’s low center of gravity kept it planted firmly during all our testing, even on our slightly sloped workshop floor.

We particularly appreciated this design when using it on a residential roof for nail gun work. The wide, flat base provided confidence that it wouldn’t topple, even when maneuvering around it in tight spaces. The integrated handle design makes one-handed carrying possible, though at approximately 30 pounds, we usually use both hands for any distance.

## What You Need to Know About the Duty Cycle

PORTER-CABLE doesn’t heavily advertise the duty cycle, so we tested it ourselves. During continuous operation powering a framing nailer on a deck project, we ran the compressor for approximately 45 minutes before we noticed it getting quite warm to the touch. We gave it a 15-minute cooldown and resumed work without issues.

For typical DIY and light professional use with intermittent operation, we never encountered thermal limitations. However, if you’re planning all-day, every-day commercial use, you might want to consider a compressor rated for continuous duty. For weekend warriors and serious hobbyists, the C2002’s duty cycle proves more than adequate.

## Air Delivery Specifications: Understanding What the Numbers Really Mean

The spec sheet lists 2.6 SCFM at 90 PSI, which might seem like jargon, but here’s what it means in practical terms: this compressor delivers enough continuous airflow to operate most finish nailers, brad nailers, pin nailers, narrow crown staplers, and inflation tools without frustrating delays.

During our testing, we found the sweet spot for tool performance sits right around 90 PSI, where the compressor delivers its rated CFM. Most pneumatic finish tools operate optimally in the 70-90 PSI range, making this a perfect match. We could maintain steady work pace on trim projects without the constant stop-and-wait that plague smaller compressors.

However, let’s be clear about limitations: this isn’t the compressor for air-hungry tools like dual-action sanders, die grinders, or impact wrenches for extended periods. We tested an orbital sander, and while it worked, the compressor cycled almost constantly. Know your use case—this excels at fastening and inflation, not continuous-draw tools.

## Tank Drain Valve: A Small Detail That Makes a Big Difference

The drain valve location on the bottom of the tank initially seemed inconvenient compared to models with side-mounted valves. However, after three months of regular use, we’ve come to appreciate it. The bottom-mounted valve allows complete drainage of condensation, which is particularly important in humid environments.

We established a routine of draining the tank after each use, which takes about 10 seconds. This simple maintenance step protects against internal rust and ensures maximum tank longevity. The brass valve operates smoothly and shows no signs of wear or leaking after hundreds of drain cycles.

## Setup and Assembly: Ready to Work in Minutes

One aspect we genuinely appreciated was the minimal assembly required. Out of the box, we needed to attach the handle and wheels (which took maybe 5 minutes with the included hardware), check the oil-free pump (just a visual inspection), and plug it in. No oil to add, no complicated setup procedures, no adjustments needed.

The included quick-start guide proved actually useful—a rarity in our experience. Within 10 minutes of opening the box, we were filling the tank for the first time. The initial fill from zero to 150 PSI took approximately 90 seconds, which gave us confidence in the pump’s efficiency.

## Portability Features: More Thoughtful Than Expected

The integrated wheels and handle system converts this
