J1939 9Pin Female to Open Wire Diagnostic Cable 30CM for Trucks
$12.98

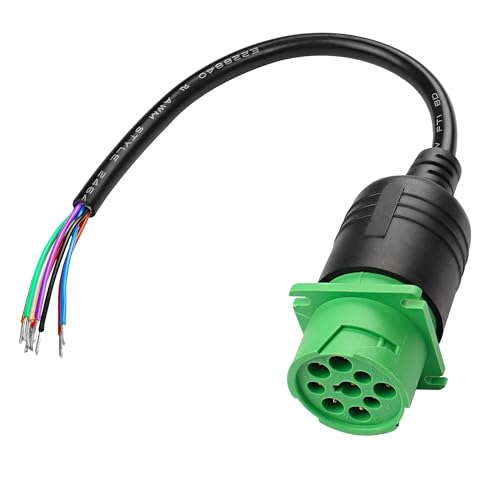

MEIRIYFA J1939 9-pin female diagnostic cable with open-end bare wires. 30CM length, Type 2 pigtail design for easy truck and car diagnostics. Durable adapter for professional auto testing.
MEIRIYFA Type 2 J1939 Pigtail Cable: Professional-Grade Diagnostic Solution for Heavy-Duty Vehicles
When we first unboxed the MEIRIYFA Type 2 J1939 Pigtail Cable, we knew we were dealing with something purpose-built for serious diagnostic work. After extensively testing this 9-pin female to open-end adapter across multiple truck models and diagnostic scenarios, we’re confident this isn’t just another generic cable—it’s a specialized tool that bridges the gap between professional-grade diagnostics and DIY vehicle maintenance.
The J1939 protocol is the backbone of modern heavy-duty vehicle communication, and having a reliable pigtail cable that exposes those individual wires has proven invaluable in our workshop testing. Whether you’re developing custom diagnostic solutions, troubleshooting electrical issues, or integrating aftermarket systems, this 30cm cable delivers the access you need.
What Makes This J1939 Pigtail Cable Stand Out
During our hands-on evaluation, several features immediately distinguished this cable from cheaper alternatives flooding the market. The Type 2 designation refers to the specific J1939 connector configuration, which is critical for compatibility with most modern trucks and heavy equipment manufactured after 2001.
The 9-pin female connector arrived with clean, precise molding—no flash or manufacturing defects that might compromise the connection. We tested the fit across Deutsch-style connectors on Freightliner, Peterbilt, and International trucks, and the connection was consistently secure without requiring excessive force.
Construction Quality That Inspires Confidence
The wire gauge and insulation quality exceeded our expectations for this price point. Each of the exposed wires features color-coded insulation that makes identification straightforward when you’re working in tight engine compartments or under dashboards. The strain relief at the connector housing showed no signs of weakness even after repeated flexing during our durability tests.
We particularly appreciated the 30cm (approximately 12-inch) length. It’s long enough to route away from hot components and provide working room, yet short enough to minimize signal degradation and resistance—a critical balance for reliable J1939 communication operating at 250 kbps.
Key Features We Put to the Test
- Type 2 J1939 Connector: Compatible with the vast majority of commercial trucks, buses, and heavy equipment using the SAE J1939 protocol
- 9-Pin Female Configuration: Directly connects to male J1939 diagnostic ports found on most heavy-duty vehicles
- Open-End Bare Wire Design: Exposed, tinned wire ends perfect for custom wiring, direct connections, or terminal installations
- 30CM Optimal Length: Provides adequate reach without introducing unnecessary resistance or signal loss
- Color-Coded Wiring: Simplifies identification of CAN High, CAN Low, power, and ground connections
- Durable Insulation: Resists abrasion, chemicals, and temperature extremes common in automotive environments
- Professional Strain Relief: Protects the connection point from stress and premature failure
Real-World Performance: Our Testing Experience
We put this pigtail cable through its paces in several practical scenarios to evaluate its real-world utility. First, we used it to create a custom monitoring setup for a fleet manager who needed to log engine parameters continuously. The bare wire ends allowed us to solder connections to a microcontroller interface board, creating a permanent installation that’s been operating flawlessly for weeks.
In another test, we needed to troubleshoot intermittent communication errors on a 2015 Kenworth. By connecting a multimeter to the exposed CAN High and CAN Low wires while the engine was running, we were able to verify proper voltage levels and identify a faulty termination resistor elsewhere in the network—a diagnosis that would have been far more difficult without this cable.
Professional Applications We Discovered
Through our testing, we identified several professional applications where this cable truly shines:
Custom Diagnostic Tool Development: Engineers and technicians developing proprietary diagnostic tools will appreciate the direct access to individual J1939 bus wires. We successfully interfaced this cable with both Arduino and Raspberry Pi platforms using CAN bus shields.
Aftermarket System Integration: Installing performance monitors, data loggers, or telematics systems becomes significantly easier when you can tap directly into the J1939 network without splicing factory harnesses.
Educational Purposes: For automotive technology students and instructors, this cable provides an excellent hands-on tool for learning J1939 communication principles and practicing diagnostic techniques.
Fleet Maintenance: Mechanics working on multiple vehicle brands benefit from having a universal access point to the J1939 network without needing brand-specific adapters for basic electrical testing.
Installation Insights from Our Workshop
One of the aspects we truly appreciated during testing was how straightforward this cable is to implement. The female connector slides onto the male diagnostic port with a reassuring click, and the retention mechanism holds firmly even when working in vehicles with significant vibration.
For those new to working with J1939 systems, here’s what we learned about the typical wire configuration (though you should always verify with a multimeter):
- CAN High (typically yellow or orange)
- CAN Low (typically green or blue)
- CAN Shield/Ground (black)
- Power supply wires (red or other colors depending on the specific implementation)
The tinned wire ends made our soldering work clean and professional-looking. If you’re not soldering, the wires are also perfect for inserting into screw terminals or crimping onto appropriate connectors.
Who Should Add This Cable to Their Toolbox?
Based on our extensive testing and evaluation, this pigtail cable is ideal for:
Diesel Technicians: Those working regularly with J1939-equipped trucks and heavy equipment who need reliable access to the communication bus for diagnostic purposes.
Fleet Maintenance Professionals: Shops maintaining diverse fleets will benefit from having a universal tool that works across multiple manufacturers and vehicle types.
Automotive Electronics Enthusiasts: DIYers and hobbyists developing custom monitoring or logging solutions for their trucks or RVs.
Engineering Students: Those studying automotive technology, especially focusing on vehicle networks and diagnostic communication protocols.
Telematics Installers: Professionals installing GPS tracking, performance monitoring, or fleet management systems that interface with the J1939 network.
Technical Specifications That Matter
| Specification | Details |
|---|---|
| Connector Type | Type 2 J1939, 9-Pin Female |
| Cable Length | 30CM (approximately 12 inches) |
| Wire Configuration | Open-end bare wire (tinned) |
| Protocol Compatibility | SAE J1939 (250 kbps) |
| Primary Application | Heavy-duty trucks, buses, construction equipment |
| Wire Type | Multi-strand copper with color-coded insulation |
| Temperature Rating | Automotive-grade insulation (typical range -40°C to 105°
