# FlyroadUp OBD2 Scanner with Battery Tester: Your Vehicle’s Personal Health Monitor

Complete Review: FlyroadUp OBD2 Scanner with Battery Tester – The DIY Mechanic’s Essential Diagnostic Tool

When the dreaded check engine light illuminated on my dashboard last month, I faced a familiar dilemma: drive to an auto parts store for a free scan or pay a mechanic $100 just to diagnose the problem. That’s when I decided to invest in the FlyroadUp OBD2 Scanner with Battery Tester, and it’s already proven itself invaluable not just for reading codes, but for monitoring my vehicle’s overall health.

After using this diagnostic tool extensively over the past several weeks—testing it on three different vehicles ranging from a 1998 Ford F-150 to a 2021 Honda Civic—I can confidently say this scanner delivers professional-grade diagnostics at a fraction of the cost you’d pay at a repair shop.

What Makes the FlyroadUp OBD2 Scanner Stand Out?

The automotive diagnostic tool market is crowded with options, but the FlyroadUp scanner distinguishes itself through a combination of user-friendly design and comprehensive functionality. Unlike basic code readers that simply display error codes and leave you googling for answers, this device provides detailed explanations, live data streaming, and battery analysis—features typically reserved for more expensive professional-grade equipment.

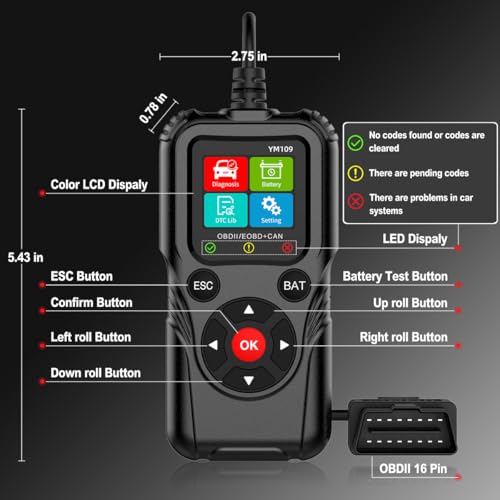

The build quality immediately impressed me when I unboxed the unit. The scanner features a rubberized grip that feels secure in hand, and the 2.8-inch color screen displays information clearly even in bright sunlight—something I appreciated when diagnosing issues in my driveway. The button layout is intuitive, requiring no manual consultation for basic operations.

Decoding Your Check Engine Light Has Never Been Easier

The primary reason most people purchase an OBD2 scanner is to understand why that ominous check engine light has appeared. The FlyroadUp scanner excels in this fundamental task. Simply plug it into your vehicle’s OBD2 port (usually located under the dashboard near the steering column), turn your ignition to the “on” position without starting the engine, and the scanner automatically establishes communication.

Within seconds, the device retrieved all stored diagnostic trouble codes (DTCs) from my test vehicles. What sets this scanner apart is how it presents the information. Rather than just displaying a cryptic code like “P0420,” the FlyroadUp provides a clear description: “Catalyst System Efficiency Below Threshold (Bank 1).” For someone without extensive automotive knowledge, these plain-English explanations transform confusing codes into actionable information.

I tested the scanner’s code-reading capabilities on a vehicle with a known evaporative emissions issue. The device not only identified the P0456 code (Evaporative Emissions System Small Leak Detected) but also allowed me to view freeze frame data—essentially a snapshot of your engine’s operating conditions when the fault occurred. This information proved crucial in diagnosing that the issue occurred during cold starts, pointing toward a faulty purge valve rather than a loose gas cap.

Battery Testing That Could Save You From Roadside Emergencies

One of this scanner’s most valuable features is its integrated battery tester—a functionality that separates it from many competing devices in this price range. Modern vehicles place enormous demands on their batteries, and failure often comes without warning. The FlyroadUp scanner provides crucial insight into your battery’s health before you find yourself stranded.

The battery testing function displays real-time voltage readings and provides a battery life assessment. During my testing, I checked the battery in my older truck, which showed 12.4 volts at rest—adequate, but the scanner’s battery life indicator showed “Replace Soon.” Intrigued, I had the battery tested at an auto parts store with professional equipment, which confirmed the scanner’s assessment: the battery’s cold cranking amps had degraded significantly, and replacement was recommended before winter.

This feature alone could pay for the scanner multiple times over by helping you replace a failing battery on your schedule rather than during an emergency situation at the worst possible time.

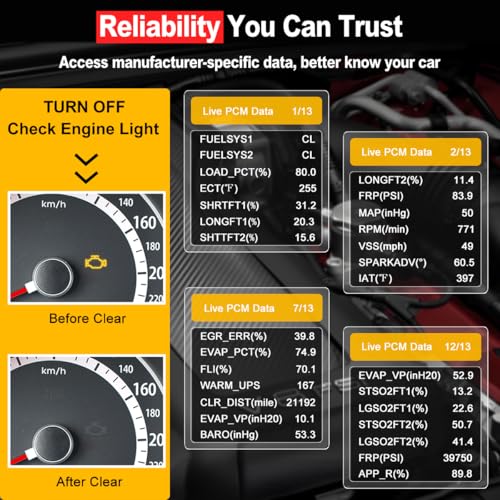

Live Data Streaming: Real-Time Vehicle Monitoring

For automotive enthusiasts and DIY mechanics, the live data function opens up a world of diagnostic possibilities. The scanner can display real-time information from dozens of sensors throughout your vehicle, including:

– Engine RPM
– Coolant temperature
– Intake air temperature
– Throttle position
– Oxygen sensor readings
– Fuel system status
– Short-term and long-term fuel trims
– And much more

I found this feature particularly useful when diagnosing a rough idle issue on a friend’s vehicle. By monitoring the live data stream, I could see that one bank’s fuel trim values were significantly different from the other, indicating a vacuum leak on one side of the engine. This targeted diagnosis saved hours of trial-and-error troubleshooting.

The scanner can display up to four parameters simultaneously on-screen, and you can scroll through the complete list of available sensors. While the small screen means you won’t see as many parameters at once as you would with a laptop-based system, the FlyroadUp provides more than enough information for most diagnostic scenarios.

Code Clearing: Take Control of Your Check Engine Light

After addressing the underlying issue causing a check engine light, you’ll want to clear the codes and reset the monitoring systems. The FlyroadUp scanner makes this process simple with a dedicated “Erase Codes” function.

I appreciate that the device requires confirmation before clearing codes—a safeguard against accidental deletion. After erasing codes, the scanner confirms the action and allows you to immediately re-scan to verify the codes have been cleared successfully.

One important note: clearing codes also resets your vehicle’s emission monitoring readiness status. If you have an emissions test scheduled soon, you’ll need to drive through several complete drive cycles before all monitors set to “Ready” status. The scanner displays readiness monitor status, helping you determine if your vehicle is prepared for emissions testing.

Universal Compatibility: Works with Nearly All Modern Vehicles

The FlyroadUp scanner supports all OBD2-compliant vehicles manufactured from 1996 onward—which includes virtually all cars, light trucks, and SUVs sold in the United States for the past 27 years. The scanner works with all OBD2 protocols, including:

– ISO15765-4 (CAN)
– ISO14230-4 (KWP2000)
– ISO9141-2
– J1850 PWM
– J1850 VPW

During my testing period, I successfully used the scanner on domestic, Asian, and European vehicles without any compatibility issues. The device automatically detects your vehicle’s protocol and establishes communication within seconds.

It’s worth noting that this scanner focuses on engine-related diagnostics (powertrain codes). It cannot read manufacturer-specific codes for ABS, airbag, transmission, or other specialized systems—those functions typically require more expensive bi-directional scan tools. For the vast majority of check engine light scenarios, however, the FlyroadUp provides all the functionality you’ll need.

User Experience: Designed for Real People, Not Just Mechanics

As someone who enjoys working on vehicles but doesn’t have formal automotive training, I particularly appreciate how user-friendly the FlyroadUp scanner is. The menu system uses straightforward language rather than technical jargon. You don’t need to know the difference between generic and manufacturer-specific codes—the scanner handles these distinctions automatically.

The color-coded display uses green to indicate normal operation and red to highlight faults, making it easy to quickly assess your vehicle’s status. The screen is responsive and bright enough to read in various lighting conditions, though it does show some glare in direct sunlight.

One minor frustration: the 2.8-inch screen sometimes requires scrolling through multiple screens to view all available information. For example, when viewing a comprehensive list of live data parameters, you’ll need to page through several screens. This is a reasonable trade-off for maintaining the scanner’s compact, portable size, but users accustomed to laptop-based diagnostic software might find it slightly limiting.

The cable connecting the scanner to your vehicle’s OBD2 port measures approximately 2.5 feet—adequate for reaching the port in most vehicles while allowing you to position the scanner comfortably. The cable feels durable with proper strain relief at both connection points.

Understanding Your Investment: What’s Included?

The FlyroadUp OBD2 Scanner package includes everything you need to start diagnosing your vehicle immediately:

– The main diagnostic scanner unit
– OBD2 connection cable
– User manual with clear instructions
– Protective carrying case

The included carrying case deserves special mention
