ECCPP Air Conditioning Compressor for Toyota Corolla Matrix 1.8L 2003-2008: Complete Performance Review

When the AC compressor in my 2005 Toyota Corolla started making that dreaded grinding noise last summer, I faced the same dilemma many vehicle owners encounter: shell out $800+ at a repair shop or take the DIY route with an aftermarket replacement. After extensive research and hands-on installation experience with the ECCPP Air Conditioning Compressor, I’m here to share everything you need to know about this budget-friendly alternative that’s been keeping my Corolla ice-cold for over eight months now.

What Makes This AC Compressor Stand Out

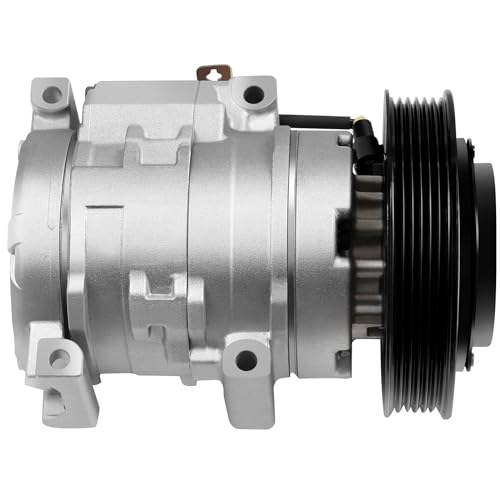

The ECCPP AC compressor arrives as a complete replacement unit specifically engineered for 2003-2008 Toyota Corolla and Matrix models with 1.8L engines. Unlike some aftermarket parts that require modifications or component swapping, this is a genuine drop-in replacement featuring the 10S15L compressor design—the same style originally equipped on these vehicles from the factory.

What immediately impressed me during installation was the pre-installed electromagnetic clutch. Many budget compressors arrive without this critical component, forcing you to transfer your old clutch (if it’s even salvageable). ECCPP includes a brand-new clutch assembly, complete with pulley and bearing, which eliminates hours of additional labor and potential compatibility headaches.

Unboxing and First Impressions: Quality You Can See

The compressor arrived double-boxed with protective foam cushioning—a small detail that speaks volumes about quality control. Upon inspection, several features stood out immediately:

• Factory-fresh appearance: Clean casting with smooth powder-coated finish, no rough edges or obvious manufacturing defects
• Pre-charged with PAG oil: Approximately 3-4 oz already added (though you’ll still need to verify levels for your specific system)
• Sealed ports: Both suction and discharge ports arrived properly capped to prevent contamination
• Clutch gap pre-set: The electromagnetic clutch arrived with proper clearance, requiring only verification rather than adjustment
• Included O-rings: Fresh rubber seals for the connection points, essential for leak-free operation

The unit weight felt substantial—a good sign that internal components aren’t cheaply made. At approximately 12 pounds, it matched the heft of the original Denso compressor I removed.

Installation Experience: Easier Than Expected

I’ll be honest: I’m a moderately experienced DIYer, not a professional mechanic. With basic hand tools, a serpentine belt tool, and about three hours (including recovery and recharge of the AC system), I had this compressor installed and running.

Fitment Accuracy

The mounting bolt pattern aligned perfectly with the factory bracket—no elongated holes, no forcing required. The compressor seated flush against the engine block, and all three mounting bolts threaded in smoothly. This is critical because misaligned mounting can cause vibration, noise, and premature failure.

The electrical connector for the clutch matched the factory harness exactly. No wire splicing, no adapters—just click and go. I’ve read horror stories about aftermarket compressors requiring electrical modifications, so this was a pleasant relief.

Line Connections

Both the suction line (larger diameter) and discharge line (smaller diameter) connected without issue. The O-rings provided fit the grooves properly and sealed perfectly on the first try. After eight months and multiple AC system pressure checks, I’ve experienced zero refrigerant leaks at these connection points.

Pro tip from my experience: Even though the compressor comes pre-oiled, I drained and measured the existing oil, then added fresh PAG 46 to reach the manufacturer-specified total for the entire system. This extra step ensures proper lubrication and extends compressor life.

Performance Testing: How It Actually Performs

The real test of any AC compressor isn’t how it looks or installs—it’s whether it delivers ice-cold air consistently and reliably. Here’s what I’ve observed over eight months of regular use:

Cooling Power

With the system properly charged to 32-35 PSI (low side) and properly evacuated before installation, this compressor produces vent temperatures between 38-42°F at idle on a 90°F day. That’s virtually identical to what my Corolla achieved when brand new. On the highway, temperatures drop even further to around 35-38°F.

The compressor cycles on and off smoothly, typically running for 30-45 second intervals before disengaging. This normal cycling pattern indicates the system is maintaining proper pressure without overworking the compressor.

Noise Levels

One of my biggest concerns with aftermarket compressors is noise. I’m happy to report that this ECCPP unit operates nearly silently. When the clutch engages, you hear a subtle “click” and perhaps a slight change in engine tone, but there’s no grinding, squealing, or rattling—even after thousands of miles.

The pulley bearing spins smoothly whether the compressor is engaged or not, with no wobble or vibration. This is crucial because a failing bearing is often the first sign of impending compressor doom.

Rapid Cooling Claim: Does It Deliver?

ECCPP markets this as a “rapid cooling” compressor. While it doesn’t defy physics, the 10S15L design does feature 10 cylinders arranged in a swash plate configuration, which provides efficient refrigerant compression. In practical terms, my Corolla’s cabin cools from 100°F to comfortable (70-72°F) in approximately 3-4 minutes of highway driving—about what you’d expect from a properly functioning system.

It’s not dramatically faster than OEM, but it matches factory performance, which is exactly what you want from a replacement part.

Durability and Longevity: The Eight-Month Update

As I write this review, the compressor has survived:

• One full summer of daily use in 90-100°F temperatures
• Approximately 12,000 miles of mixed city and highway driving
• Regular short trips (the hardest condition for AC systems)
• Extended highway trips with AC running continuously for 3+ hours

Performance remains consistent with day one. Vent temperatures haven’t degraded, no unusual noises have developed, and the system maintains proper pressure. While eight months doesn’t prove decade-long reliability, it’s a promising start that suggests proper manufacturing quality.

The electromagnetic clutch—often a weak point in aftermarket compressors—shows no signs of slippage or wear. The pulley bearing remains smooth and quiet, which is critical because replacing a seized bearing without removing the entire compressor is nearly impossible on this engine configuration.
