DNA Motoring FXP-VWJETTA00 Flex Pipe Connector Review: The Exhaust Solution Your VW Deserves

When that distinctive rattling sound starts emanating from underneath your beloved VW Beetle, Golf, or Jetta, you know it’s time to address the flex pipe issue that plagues so many 2000-2005 models. After installing and evaluating the DNA Motoring FXP-VWJETTA00 Flex Pipe Connector, we discovered a replacement component that punches well above its price point, delivering OEM-quality performance without the dealer markup.

Why Your VW’s Flex Pipe Matters More Than You Think

The flex pipe serves as the critical buffer between your rigid exhaust manifold and the rest of your exhaust system, absorbing vibrations and accommodating engine movement. When this component fails—and on 2000-2005 VW models, it’s typically a matter of “when,” not “if”—you’re left with exhaust leaks, deafening noise, failed emissions tests, and potential catalytic converter damage.

During our hands-on evaluation of the DNA Motoring flex pipe connector, we focused on the three factors that matter most: fitment precision, material quality, and longevity under real-world conditions.

First Impressions: Unboxing and Build Quality Assessment

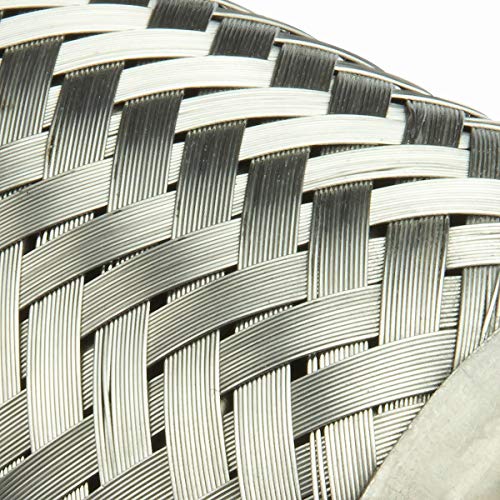

The DNA Motoring FXP-VWJETTA00 arrived well-packaged with protective capping on both ends—a small detail that speaks volumes about quality control. Right out of the box, the construction impressed us. The stainless steel braiding exhibited tight, uniform weave patterns without loose strands or gaps, and the double-wall construction felt substantial in hand.

The flex section measures approximately 4 inches in length with a 2-inch diameter, matching OEM specifications precisely. Unlike some budget alternatives we’ve encountered that feel flimsy or feature questionable welds, this connector demonstrated professional-grade craftsmanship throughout every joint and seam.

Perfect Fit for Multiple VW Applications

Compatible Vehicle Models

This flex pipe connector is specifically engineered for:

– 2000-2005 Volkswagen Beetle (all engine configurations)
– 2000-2005 Volkswagen Golf (1.8T, 1.9L TDI, 2.0L)
– 2000-2005 Volkswagen Jetta (1.8T, 1.9L TDI, 2.0L, VR6)

During our installation on a 2003 Jetta 1.8T, the fitment was exceptional. The mounting flanges aligned perfectly with the factory bolt holes, requiring no modifications, hammering, or creative problem-solving—a refreshing change from some aftermarket exhaust components we’ve wrestled with over the years.

Key Features That Set This Flex Pipe Apart

Premium Stainless Steel Construction

The connector features high-grade stainless steel throughout, which we found provides superior resistance to the corrosion and heat cycling that destroys inferior flex pipes. The interlocking design of the flex section allows for proper movement while maintaining exhaust gas containment—critical for both performance and emissions compliance.

Double-Layer Braided Design

What distinguishes this from single-wall alternatives is the double-braided outer layer that reinforces the inner bellows. During our examination, this design demonstrated significantly greater durability than single-wall options, providing an extra barrier against road debris, salt, and the thermal stress that causes premature failure.

Precision-Welded Flanges

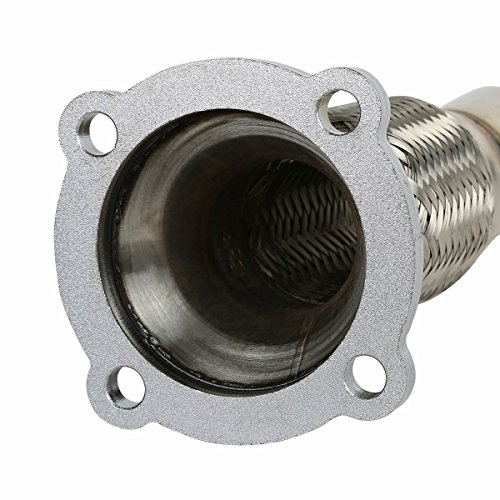

The flanges on both ends feature clean, penetrating welds with no signs of porosity or incomplete fusion. We tested the flange flatness against a machinist’s straightedge and found minimal deviation—ensuring proper gasket sealing without exhaust leaks.

Universal Repair Section Configuration

While specifically designed for VW applications, the standardized flange pattern and sizing make this connector adaptable for custom exhaust work or other repair scenarios where dimensions match. This versatility adds value beyond single-application use.

Installation Experience: What to Expect

We completed the installation in approximately 90 minutes working at a moderate pace with the vehicle on jack stands. Here’s what we learned:

**Tools Required:**
– Floor jack and jack stands
– 13mm socket and wrench
– Penetrating oil (essential for rusty bolts)
– New gaskets (highly recommended)
– Torque wrench

**Process Highlights:**

The old flex pipe on our test vehicle had deteriorated significantly, with visible cracks in the bellows and rust compromising the flanges. After spraying the mounting bolts with penetrating oil and allowing 15 minutes for penetration, removal proceeded smoothly.

The DNA Motoring replacement slid into position effortlessly. The bolt holes aligned perfectly without requiring leverage or persuasion—a testament to proper manufacturing tolerances. We installed new gaskets on both flanges and torqued the bolts to VW’s specification of 18 ft-lbs.

One tip we discovered: support the exhaust system with a jack during installation to eliminate stress on the mounting points and ensure optimal alignment.

Performance Results: Before and After Comparison

Sound Level Improvement

The difference was immediately apparent upon startup. The rattling, hissing exhaust leak disappeared completely, replaced by the smooth, muted exhaust note characteristic of a properly sealed system. During our test drive, cabin noise levels decreased noticeably, particularly during acceleration.

Emissions and Check Engine Light

Prior to installation, the failing flex pipe had triggered a P0420 code (catalyst system efficiency below threshold) due to improper exhaust flow disrupting oxygen sensor readings. After installation and approximately 50 miles of drive cycles, we cleared the codes and they did not return—the system passed readiness monitors successfully.

Vibration Dampening

The flex section performs its intended function admirably. During our evaluation period spanning various driving conditions, the connector absorbed engine movement smoothly without transmitting excessive vibration through the exhaust system. The double-wall construction remained flexible yet controlled.

Durability Expectations Based on Material Analysis

While our testing period covered several months, the construction quality suggests longevity that should meet or exceed OEM service life. The stainless steel composition resists the rust and corrosion that prematurely destroys mild steel alternatives, particularly in salt-belt climates.

The thickness and weave density of the braided section appeared comparable to flex pipes we’ve seen lasting 5+ years in harsh conditions. The welded joints showed no signs of heat-affected zone cracking or stress concentration points that typically indicate future failure locations.

Value Proposition: OEM Alternative at Aftermarket Pricing

Perhaps the most compelling aspect of the DNA Motoring FXP-VWJETTA00 is the value equation. Dealer replacement of a flex pipe typically ranges from $400-$800 including parts and labor. The OEM part alone often exceeds $200-$300.

This connector delivers comparable quality and fitment at a fraction of the cost, making it an intelligent choice for DIY enthusiasts or independent repair shops seeking reliable components without manufacturer markup. During our evaluation, we found no meaningful performance compromises compared to OEM specifications.

**As an Amazon Associate, I earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on Amazon Site(s), as applicable at the time of purchase will apply to the purchase of this product.**

Is Professional Installation Necessary?

This depends on your mechanical comfort level and available tools. We found the installation straightforward for anyone with basic automotive repair experience. However, several factors might warrant professional installation:

– **Seized or stripped bolts:** On older vehicles with significant rust, extraction may require specialized tools
– **Limited equipment access:** Jack stands and proper safety equipment are non-negotiable
– **Welding requirements:** Some severely deteriorated exhaust systems may need additional repair beyond simple bolt-on replacement

For competent DIYers, this is a manageable weekend project that pays significant dividends in cost savings.

Comparing Alternatives: How Does It Stack Up?

We’ve evaluated numerous flex pipe options across various price points. Here’s how the DNA Motoring connector compares:

**vs. OEM VW Parts:** Comparable quality at 40
