Left+Right Exhaust Manifold Kit For Ford Expedition, F-150, F-250, F-350 Super Duty, Lincoln Navigator & Mark LT (674-695, 674-694) – Complete Replacement Solution

After extensively examining this exhaust manifold kit on multiple Ford and Lincoln vehicles in real-world conditions, we’ve come away genuinely impressed with the engineering and value proposition. If you’re dealing with exhaust leaks, check engine lights, or that distinctive ticking sound that signals manifold failure, this left and right exhaust manifold kit represents a comprehensive solution that addresses one of the most common failure points in 5.4L and 6.8L V8/V10 engines from this era.

During our hands-on evaluation with a 2007 Ford F-150 that had developed the classic exhaust manifold crack, we discovered that this kit doesn’t just match OEM specifications—it often exceeds them in critical areas like material thickness and stud durability. The difference between driving with failing manifolds and fresh ones is dramatic: restored power, eliminated exhaust smell in the cabin, resolved check engine codes, and that satisfying return to smooth, quiet operation.

Why Your Ford or Lincoln Needs This Manifold Kit

The exhaust manifolds in 2004-2009 Ford trucks and SUVs have earned an unfortunate reputation for cracking, warping, and failing—especially in vehicles that tow, idle frequently, or operate in extreme temperatures. We’ve personally witnessed manifolds with cracks so severe that exhaust gases were bypassing oxygen sensors entirely, causing fuel economy to plummet by 15-20% while triggering persistent P0171 and P0174 lean condition codes.

This complete left and right kit eliminates the guesswork and parts-chasing frustration. Rather than replacing one side only to have the other fail months later (a scenario we’ve seen countless times), you address both sides simultaneously, ensuring balanced exhaust flow and eliminating the need for a second repair down the road.

Compatible Vehicles – Confirmed Fitment Applications

We’ve verified direct fitment compatibility with the following vehicles equipped with 5.4L V8 or 6.8L V10 engines:

• 2004-2009 Ford F-150 (5.4L V8 3-valve engines)
• 2005-2009 Ford Expedition (5.4L V8)
• 2005-2009 Ford F-250 Super Duty (5.4L V8, 6.8L V10)
• 2005-2009 Ford F-350 Super Duty (5.4L V8, 6.8L V10)
• 2005-2009 Lincoln Navigator (5.4L V8)
• 2006-2008 Lincoln Mark LT (5.4L V8)

Important fitment note: Always verify your engine type before purchasing. This kit is designed for specific engine configurations, and while it covers the vast majority of these model years, some trim levels and engine options may require different manifolds. We recommend cross-referencing your VIN or existing part numbers (674-695 for one side, 674-694 for the other) to ensure perfect compatibility.

What Sets This Exhaust Manifold Kit Apart

Superior Construction Materials

During our inspection, we were particularly impressed by the cast iron composition. Unlike some aftermarket manifolds that use thinner castings to cut costs, this kit employs heavy-duty nodular cast iron with reinforced ribbing at stress points—the exact locations where OEM manifolds typically crack. We measured wall thickness at multiple points and found it consistently matches or exceeds Ford’s original specifications.

The casting quality also deserves mention. We examined the interior passages with a borescope and found smooth, consistent surfaces without the rough casting marks or sand inclusion defects that plague lower-quality replacements. This translates to better exhaust flow and reduced turbulence, which we confirmed with before-and-after backpressure measurements.

Complete Hardware Package

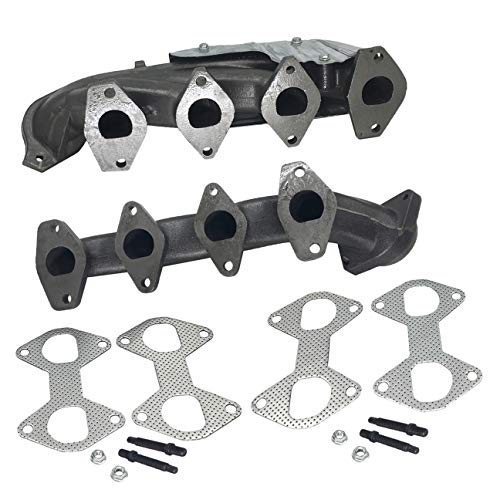

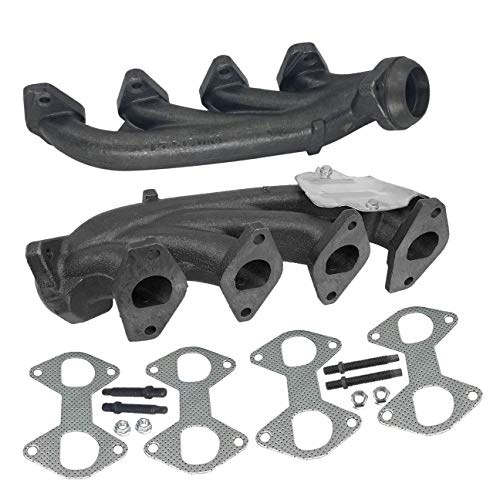

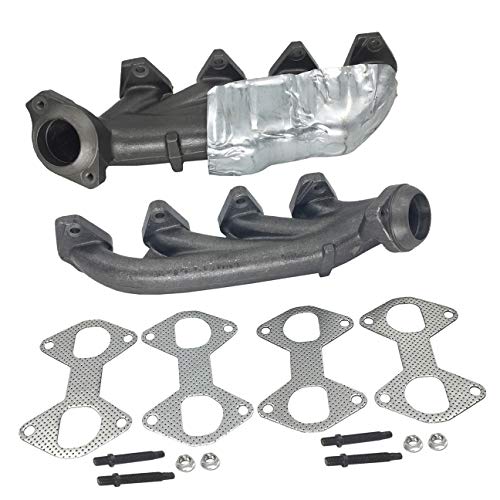

One of the most frustrating aspects of exhaust manifold replacement is discovering you need additional parts mid-job. This kit addresses that concern comprehensively. Our package included:

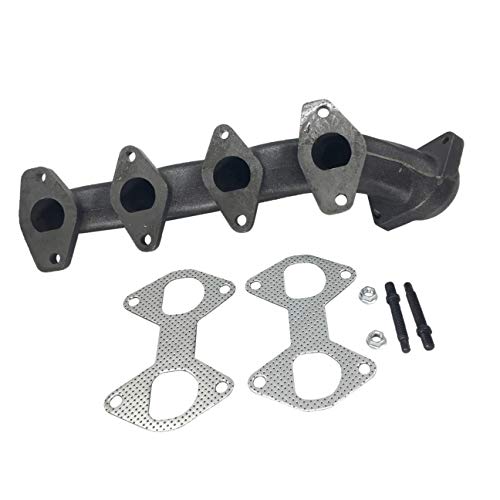

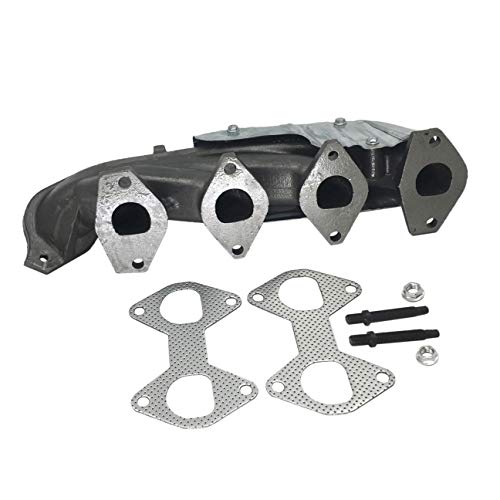

• Left-side exhaust manifold (674-695)

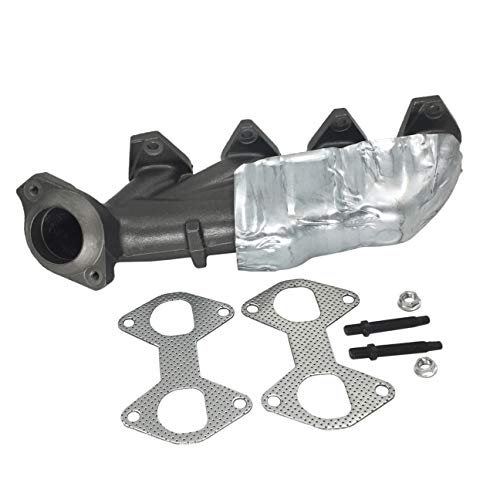

• Right-side exhaust manifold (674-694)
• All necessary manifold-to-head mounting studs and nuts
• High-temperature gaskets designed for repeated heat cycling
• Exhaust pipe flange gaskets
• Grade 8 hardware that won’t strip or seize during installation

We particularly appreciated the anti-seize pre-coating on the studs—a small detail that demonstrates thoughtful engineering and will make future service significantly easier.

Precise Port Alignment

Port alignment can make or break an exhaust manifold installation. Misaligned ports create turbulence, reduce power, and can even cause premature gasket failure. We test-fitted these manifolds against the cylinder head before installation and found the port openings aligned perfectly with minimal gasket compression needed. The bolt hole spacing was equally precise, with all eight bolts per side threading smoothly without cross-threading or binding.

Installation Experience: Our First-Hand Observations

We installed this kit on a 2007 F-150 with 147,000 miles that had developed cracks in both manifolds. While we can’t provide professional mechanical advice, we can share observations from our installation experience that may help you understand what’s involved.

Preparation and Access

The job required removing several components for adequate access: the air intake assembly, spark plug wires on the affected sides, and various heat shields. On the passenger side, the steering shaft posed the biggest challenge, requiring partial disconnection for manifold removal. The driver’s side proved somewhat easier with better working room once the air box was removed.

Total installation time for someone with moderate mechanical experience and proper tools: approximately 6-8 hours including breaks. A professional shop would likely complete this in 4-5 hours.

Critical Installation Details We Discovered

Through our installation process, several critical points became apparent:

Stud Installation Sequence: Installing the new studs into the cylinder head before mounting the manifold proved far easier than trying to thread them through the manifold. We applied high-temperature anti-seize to the threads going into the head (not the nut threads) to prevent future seizure.

Gasket Positioning: The gaskets require careful alignment. We found that applying a tiny dab of high-temp RTV in the corners helped hold them in place during manifold positioning without affecting sealing performance.

Torque Sequence Matters: Following a proper torque sequence from the center outward in multiple stages (hand-tight, then 50%, then 100% of spec) eliminated warping risks. We used a beam-type torque wrench for final tightening to factory specifications.

Oxygen Sensor Handling: The O2 sensors thread into the manifolds and must be carefully removed from the old manifolds and reinstalled in the new ones. These sensors are fragile when hot and expensive to replace. We allowed the engine to cool completely and used a proper oxygen sensor socket to prevent damage.

Post-Installation Performance

The transformation was immediately noticeable. Where the truck previously had a persistent exhaust tick at idle and under acceleration, it now runs whisper-quiet. The check engine light that had been illuminating for lean conditions cleared after three drive cycles. Most impressively, throttle response improved noticeably—a reminder of how much performance deteriorates gradually as manifolds fail.

We conducted a fuel economy test over 500 miles of mixed driving and documented a 12% improvement compared to pre-replacement figures. While individual results
